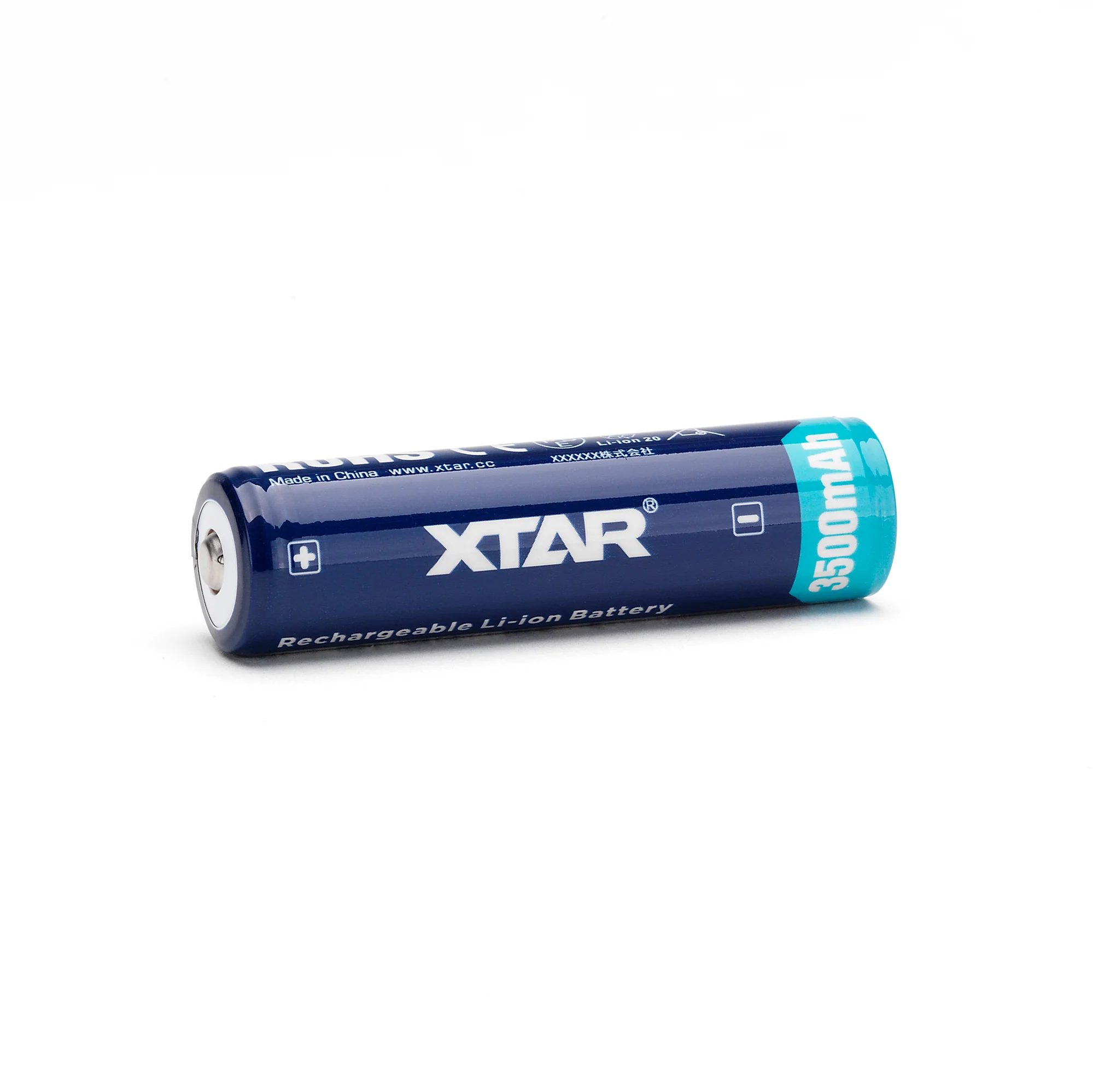

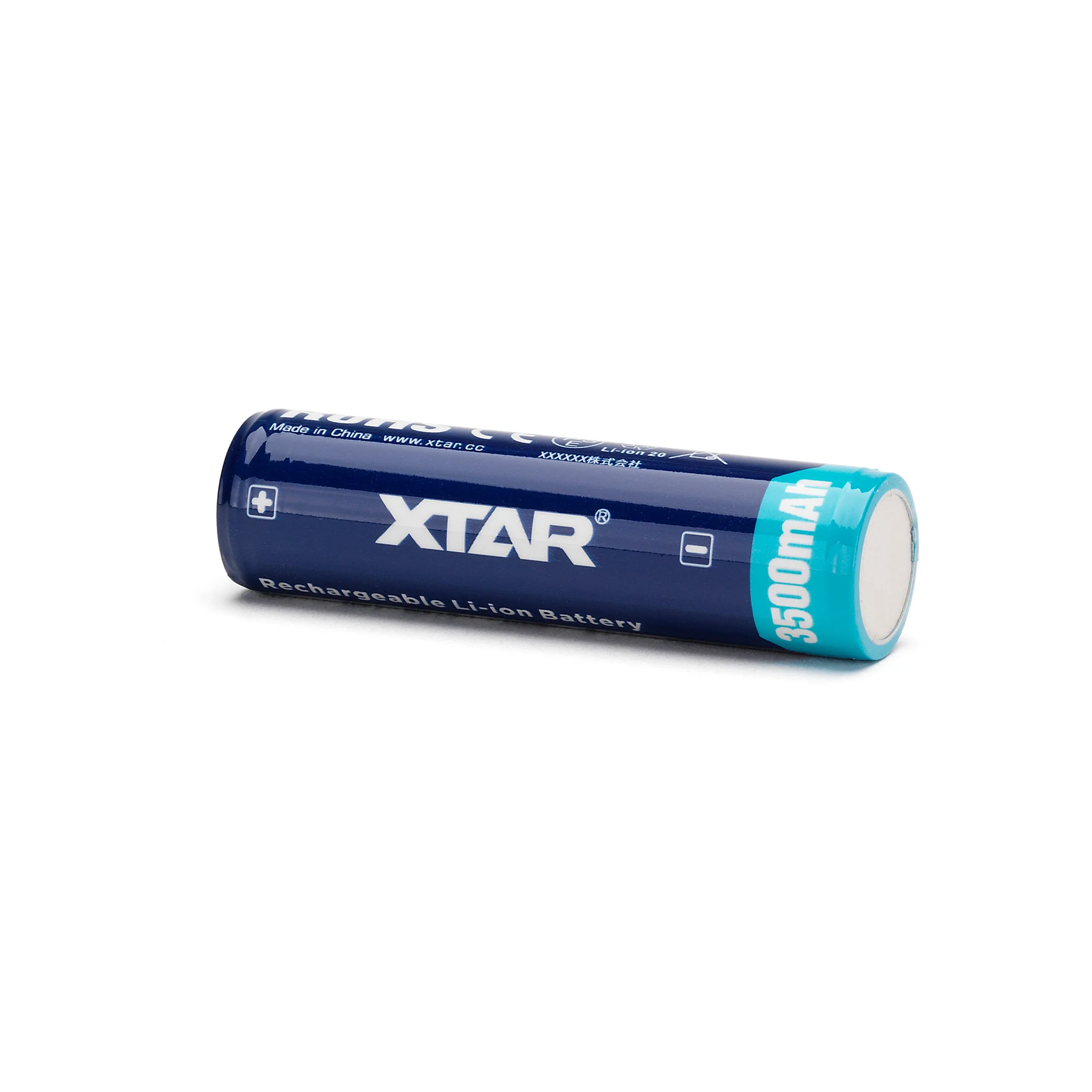

XTAR 18650 3500mAh 10A Battery - Protected Button Top

Key Features

• 3500mAh high-capacity lithium-ion cell for extended runtime
• 10A maximum continuous discharge for stable power delivery
• Integrated PCB protection against overcharge and over-discharge
• Button top design for compatibility with supported devices
• Reinforced outer wrapper and insulation for added safety

Note: This is a button top protected 18650 battery which is longer than a standard flat top unprotected 18650 battery.

Overview

The XTAR 18650 3500mAh 10A battery is a protected lithium-ion cell engineered for applications requiring both high capacity and enhanced safety. Equipped with an integrated protection circuit board, this button top battery safeguards against overcharge, over-discharge, over-current, and short circuit conditions. Its extended length accommodates the PCB while maintaining a compact 18650 form factor, making it a dependable solution for safety-critical power applications.

Applications / Uses

• Rechargeable battery-powered equipment
• Portable electronics requiring protected cells
• Emergency lighting systems
• Outdoor and handheld electronic devices
• Consumer and professional power applications

SPECIFICATIONS

Manufacturer:	XTAR
Battery Size:	18650
Positive Terminal:	Button Top
Nominal Capacity:	3500mAh
Continuous Discharge Rating:	10A Maximum Continuous
Nominal Voltage:	3.6V
Maximum Voltage:	4.2V
Protected:	Yes, PCB
Rechargeable:	Yes
Approx. Dimensions:	18.4mm x 69.1mm
Approx. Weight:	48.4g
