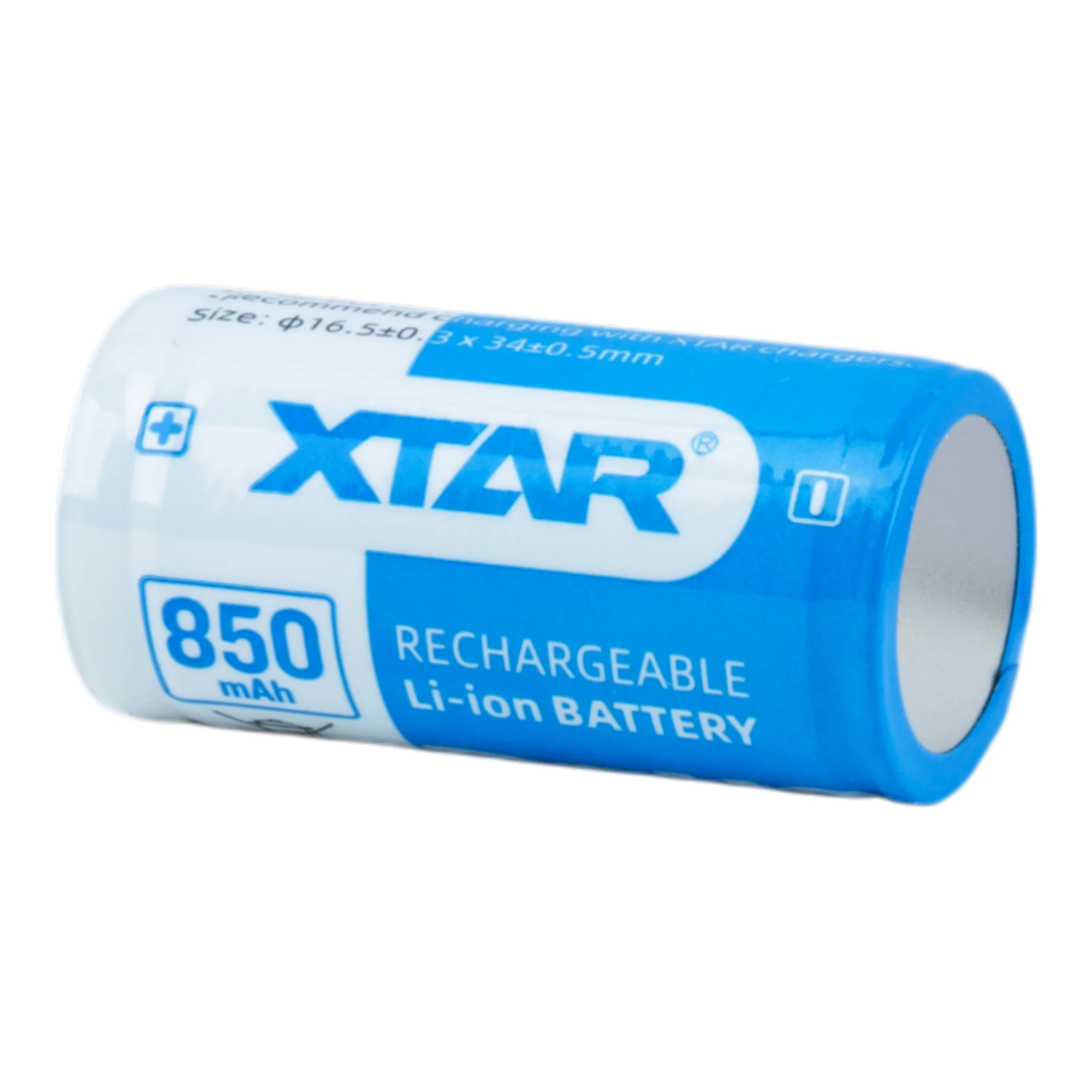

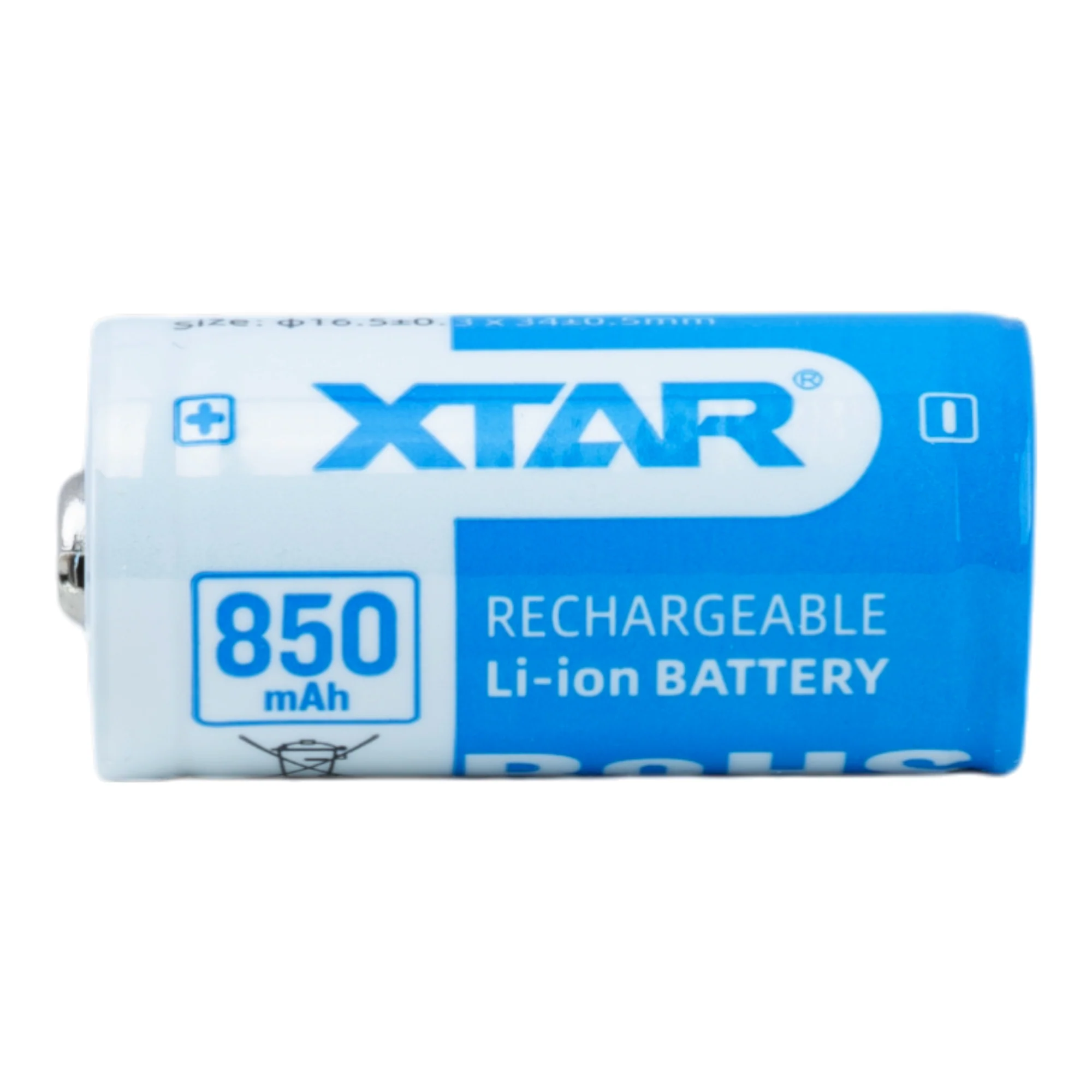

XTAR 16340 850mAh Battery - Protected Button Top
Key Features
- 850mAh Nominal Capacity: Reliable energy output with a guaranteed minimum capacity of 800mAh.
- Integrated Protection Circuit: Built-in PCB safeguards against overcharge, over-discharge, and over-current.
- Stable 2.5A Discharge: Maintains consistent voltage under continuous load conditions.
- Extended Cycle Life: Rated for 800+ charge cycles for long-term dependability.
- Protected Button Top Design: Optimized for compact devices requiring added safety.
Overview
The XTAR 16340 850mAh rechargeable lithium-ion battery is engineered for consistent performance and enhanced protection. Featuring a button top terminal and integrated PCB, this cell delivers stable output with a maximum continuous discharge of 2.5A. Its compact size, long cycle life, and protective features make it a dependable power solution for precision electronics and portable systems.
Applications / Uses
- High-output LED flashlights
- Portable electronic instruments
- Medical and monitoring equipment
- Security and inspection devices
- Compact rechargeable power systems
SPECIFICATIONS
| Manufacturer: | XTAR |
| Battery Size: | 16340 |
| Positive Terminal: | Button Top |
| Protected: | Yes, PCB |
| Nominal Capacity: | 850mAh |
| Minimum Capacity: | 800mAh |
| Max Continuous Discharge: | 2.5A |
| Nominal Voltage: | 3.6V |
| Charge Voltage: | 4.2 ±0.03V |
| Discharge Cut-Off Voltage: | 2.5V |
| Cycle Life: | 800+ |
| Internal Resistance: | ≤130mΩ |
| Approx. Dimensions: | 16.5mm × 34.0mm |
| Approx. Weight: | ≤18.2g |
| Data Specification Sheet: | XTAR 16340 850mAh Datasheet |
