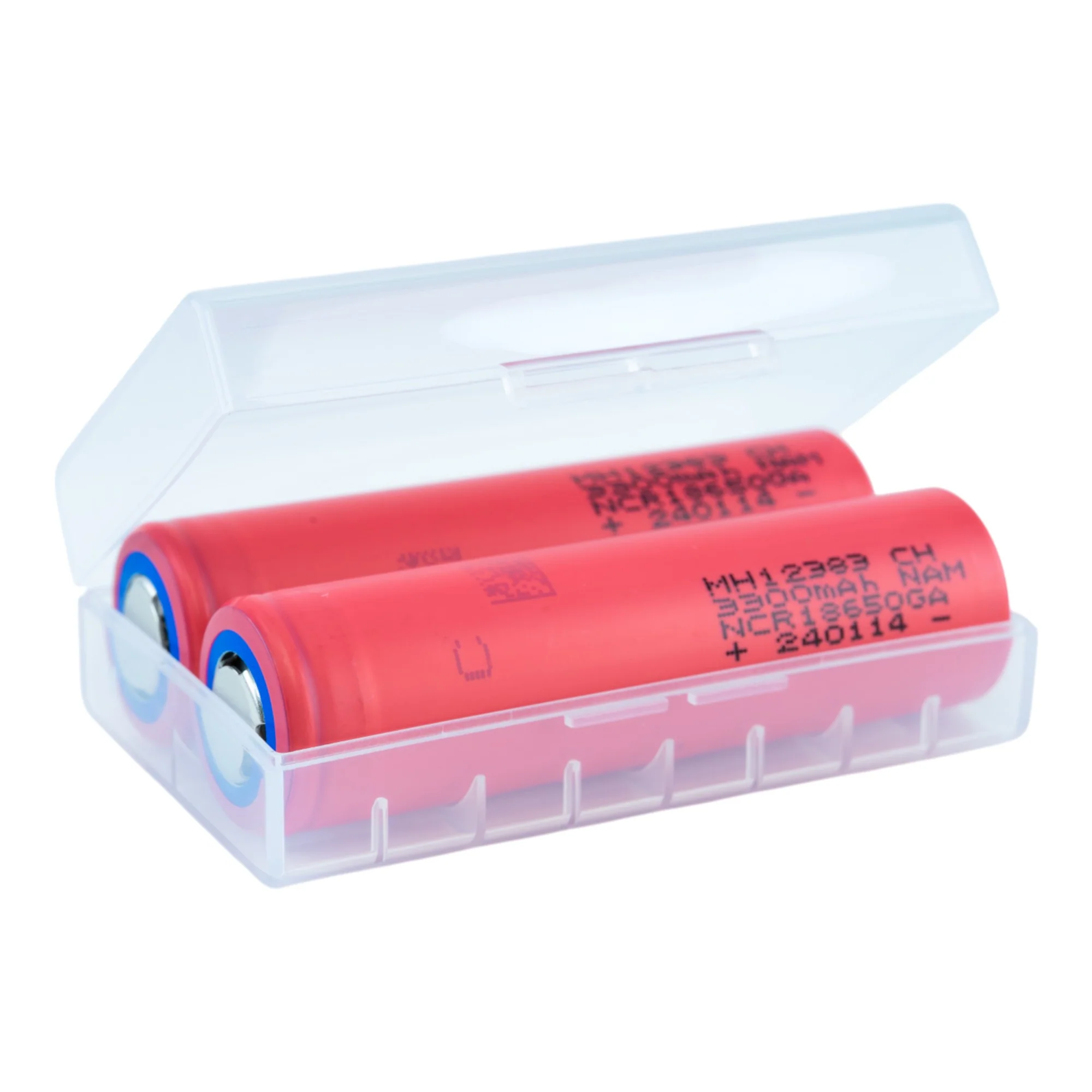

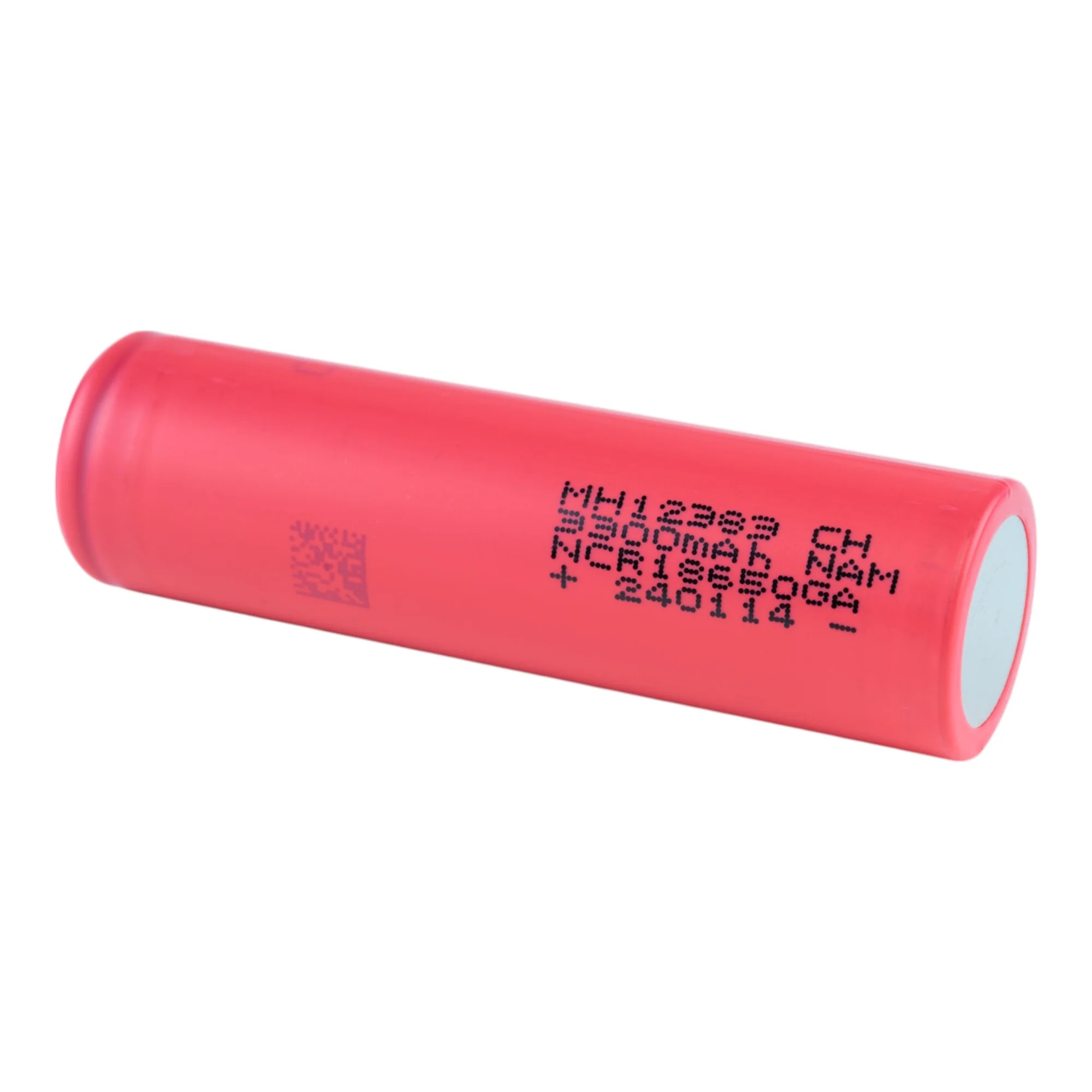

Sanyo NCR18650GA 3450mAh 10A Battery

Key Features

• High-capacity 3450mAh lithium-ion cell
• Stable 10A continuous discharge capability
• CC-CV charging protocol for consistent performance
• High energy density for compact power solutions
• Designed for long cycle life and reliability

Overview

The Sanyo NCR18650GA is a high-energy 18650 lithium-ion cell engineered for applications requiring extended runtime and dependable output. With a typical capacity of 3450mAh and a continuous discharge rating of 10A, this cell delivers a strong balance of energy density and performance. Its CC-CV charging profile and wide operating temperature range make it well-suited for professional and technical power systems.

Applications / Uses

• Portable power banks
• High-output flashlights
• Rechargeable battery packs
• Energy storage systems
• Battery-powered electronics

SPECIFICATIONS

Manufacturer	Sanyo
Model	NCR18650GA
Size	18650
Positive Terminal	Flat Top
Nominal Capacity	3450mAh
Continuous Discharge Rating	10A
Nominal Voltage	3.6V
Maximum Voltage	4.2V
Discharge Cut-Off Voltage	2.5V
Protected	No
Rechargeable	Yes
Approx. Dimensions	18.5mm × 65.3mm
Approx. Weight	48g
Data Specification Sheet	Sanyo NCR18650GA Datasheet
