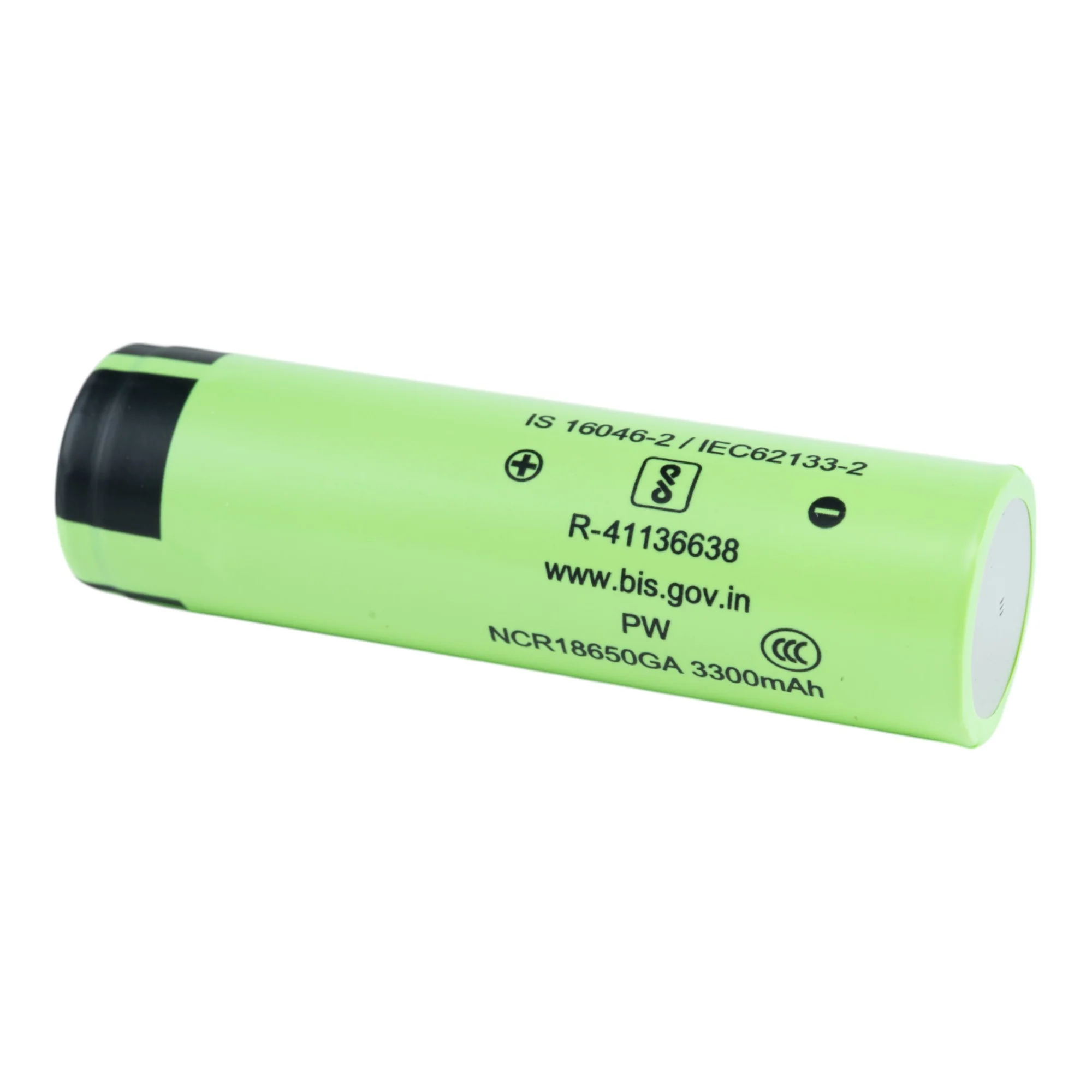

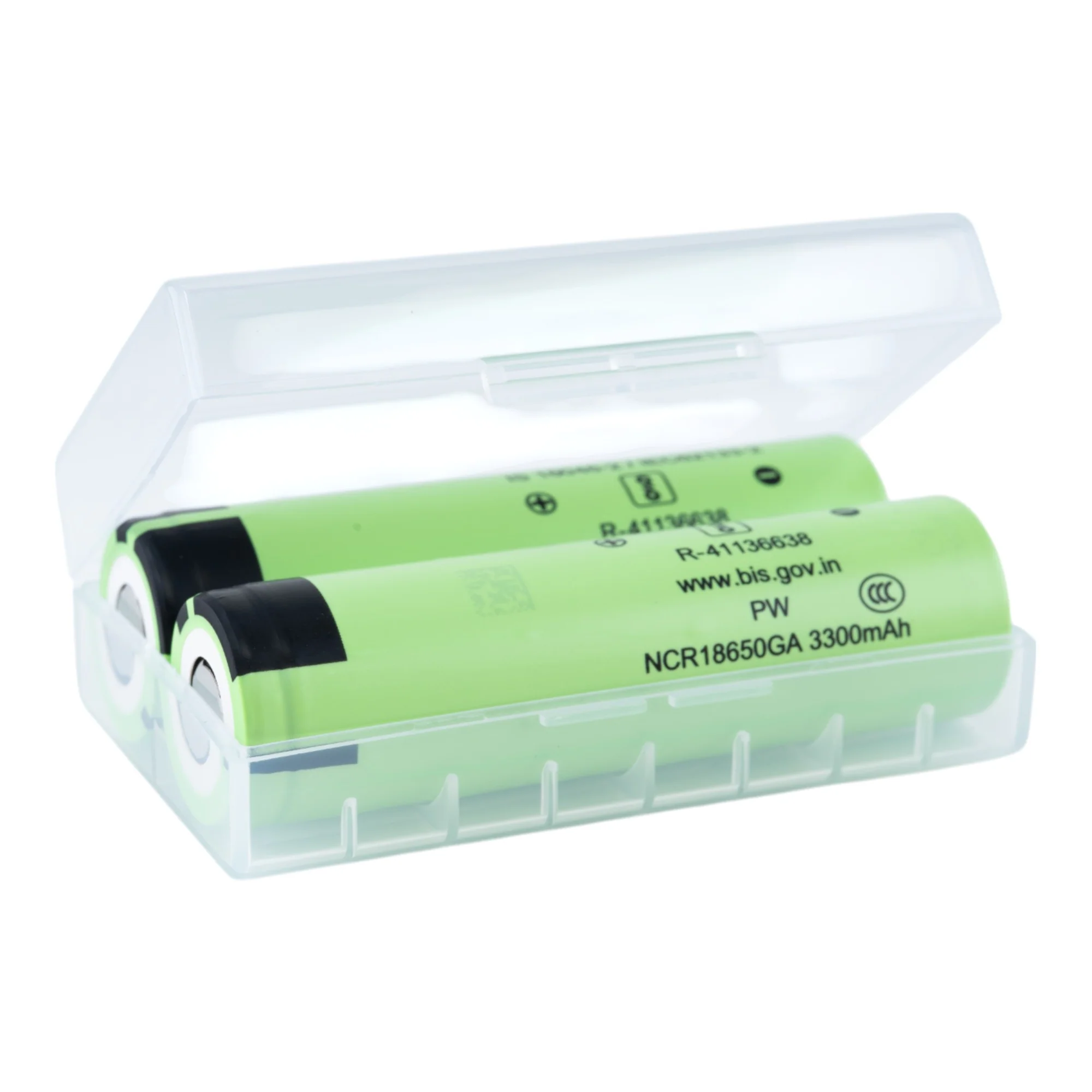

Panasonic NCR18650GA 3450mAh 10A Battery

Key Features

• High-capacity 3450mAh lithium-ion cell
• Stable 10A continuous discharge performance
• CC-CV charging profile for consistent efficiency
• High energy density in a compact 18650 format
• Designed for long cycle life and reliability

Overview

The Panasonic NCR18650GA is a high-energy 18650 lithium-ion battery engineered for applications that require extended runtime and dependable current delivery. With a typical capacity of 3450mAh and a continuous discharge rating of 10A, this cell offers an excellent balance of energy density, efficiency, and durability. Its wide operating temperature range and proven Panasonic cell design make it well-suited for advanced rechargeable power systems.

Applications / Uses

• Rechargeable battery pack assemblies
• Portable power stations
• High-output lighting systems
• Energy storage solutions
• Battery-powered electronic equipment

SPECIFICATIONS

Manufacturer	Panasonic
Model	NCR18650GA
Size	18650
Positive Terminal	Flat Top
Nominal Capacity	3450mAh typical / 3300mAh rated / 3350mAh minimum
Continuous Discharge Rating	10A
Nominal Voltage	3.6V
Maximum Voltage	4.2V
Discharge Cut-Off Voltage	2.5V
Protected	No
Rechargeable	Yes
Approx. Dimensions	18.5mm × 65.3mm
Approx. Weight	48g
Data Specification Sheet	Panasonic NCR18650GA Datasheet
