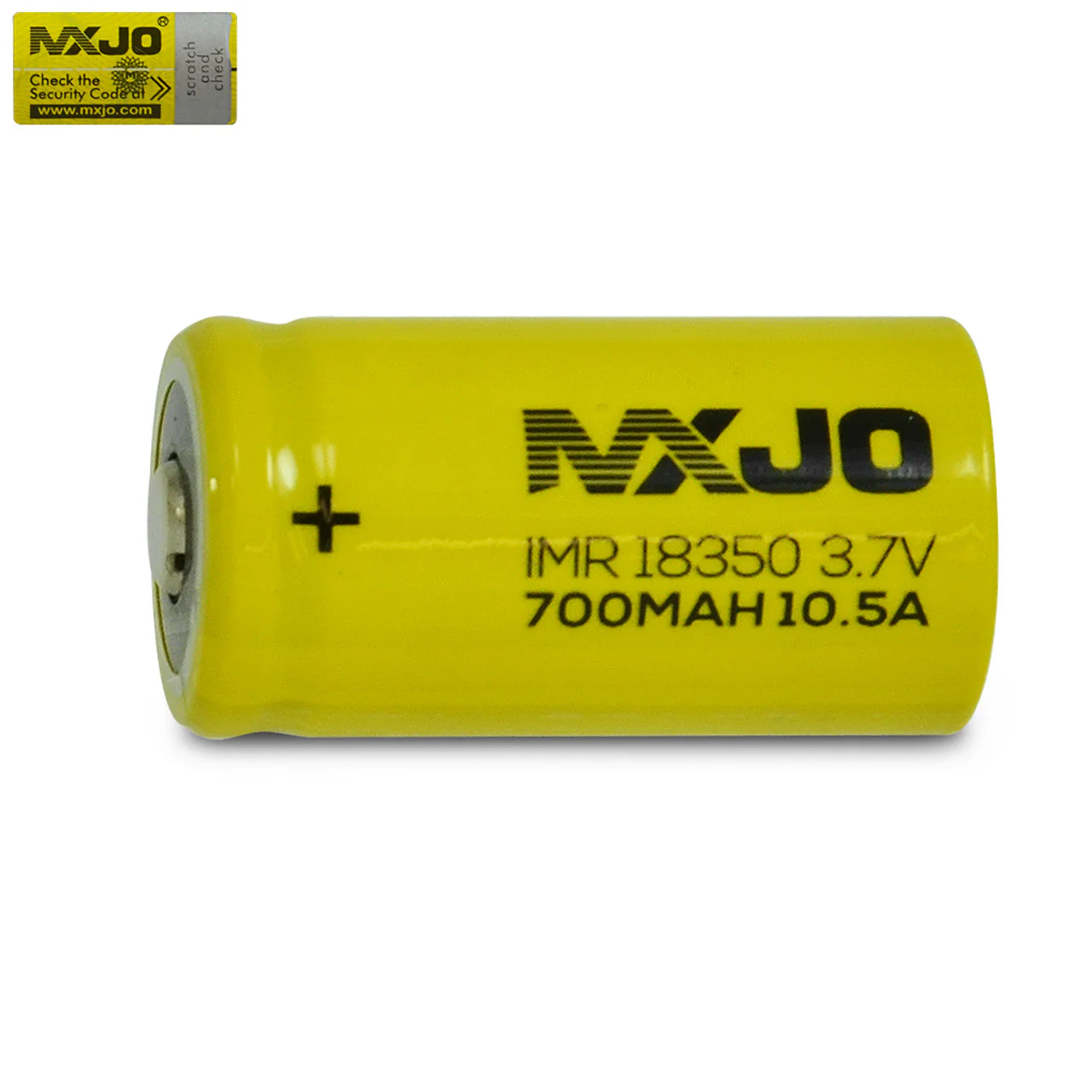

MXJO 18350 700mAh Battery - Button Top
Key Features
- 700mAh nominal capacity designed for compact power requirements
- Rated for up to 7A continuous discharge with 10.5A pulse capability
- Button top positive terminal for compatible 18350 battery systems
- Stable lithium-ion chemistry for consistent voltage delivery
- Unprotected cell intended for use in systems with external protection
Overview
The MXJO 18350 700mAh Button Top battery is a compact lithium-ion rechargeable cell engineered for reliable performance in space-restricted applications. Delivering a balance of capacity and discharge capability, this cell provides stable output for devices requiring moderate current in a small form factor. Its button top design ensures compatibility with supported battery compartments and assemblies.
Applications / Uses
- Compact electronic devices requiring 18350 button-top cells
- Battery packs with integrated protection circuitry
- Portable instruments and measurement equipment
- Low-profile power systems with limited space
- OEM and replacement battery applications
Specifications
| Manufacturer: | MXJO |
| Battery Size: | 18350 |
| Positive Terminal: | Button Top |
| Nominal Capacity: | 700mAh |
| Continuous Discharge Rating (max): | 7A Continuous, 10.5A Pulse (MXJO Rated) |
| Nominal Voltage: | 3.7V |
| Maximum Voltage: | 4.2V |
| Protected: | No – Unprotected |
| Rechargeable: | Yes |
| Approx. Dimensions: | 18.69mm x 34.58mm |
| Approx. Weight: | 21.3g (Max) |
| Data Specification Sheet: | MXJO 18350 700mAh Datasheet |
